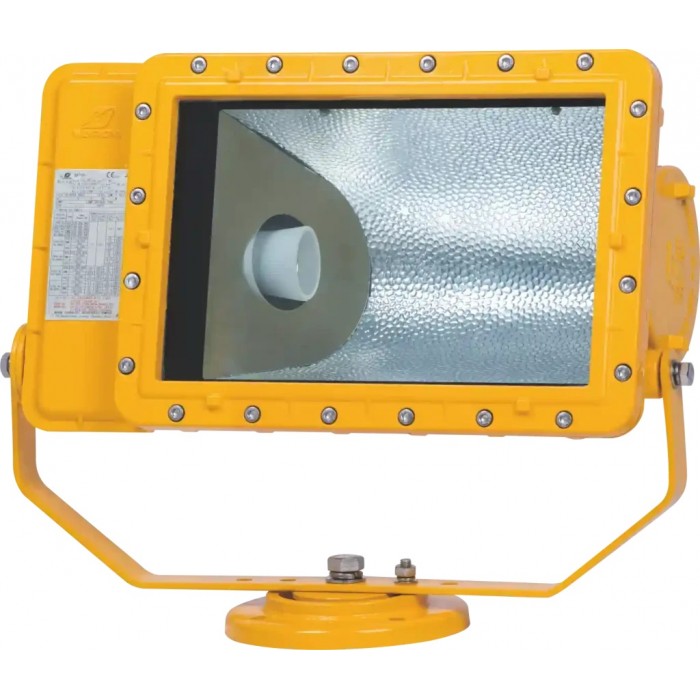

BnT81 Series Aluminium ATEX Floodlights , Hazardous Location ights with 400W~1000W

BnT81 Series Aluminium ATEX Floodlights , Hazardous Location ights with 400W~1000W
BnT81 Series Aluminium ATEX Floodlights , Hazardous Location ights with 400W~1000W
  • TECHNICAL DATA



    Product Parameters

    • Product Type: BnT81
    • Standards: CENELEC, IEC, NEC
    • Zones:
      • Zone 2
      • Zone 21 and Zone 22
      • Class I, Zone 2
      • Class I, Division 2, Groups A, B, C, D
    • Explosion protection:
      • IECEx (Gas and dust): Ex nR IIC xxx1) Gc; Ex tb IIIC Txxx1) Db IP65
      • ATEX (Gas and dust): II 3 G Ex nR IIC xxx1) Gc; II 2 D Ex tb IIIC Txxx1) Db IP65
    • Certificates: IECEx, ATEX
    • Material:
      • Enclosure: Copper-free Aluminium Alloy, powder coated surface
      • Glass cover: Toughened glass, stands 4J impact
      • Internal reflector: High-purity aluminium
      • Exposed fastener: Stainless steel
    • Ballast: Electromagnetic ballast, rapid starting, stable performance
    • Lamp holder: American Standard: E39; European Standard: E40
    • Available lamp and lamp power (W):
      • American standard (120V/208V/240V/277V/480V AC): HIE 175W, 250W, 400W, HSE 150W, 250W, 400W
      • European standard (220~240V, 250V AC): HIE 250W, 400W, HSE 150W, 250W, 400W
    • Rated luminous flux: 25000~130000lm
    • Rated voltage:
      • American standard: 120V/208V/240V/277V AC 60Hz (50Hz is optional)
      • European standard: 230V AC 50Hz (60Hz is optional)
    • Earthing protection: M5 (internal & external earth bolts)
    • Degree of protection: IP65
    • Ambient temperature: ATEX / IECEx: -60℃~+55℃; UL: -60℃~+45℃
    • Terminal: 3 x 1.5~4mm² (L+N+PE)
    • Cable entries:
      • 2×Φ21: 1×M20×1.5 plug, 1×M20×1.5 cable gland (DQM-l Ex eb)
    • Available cable outer diameter: Φ5~Φ10 (mm)
    • Weight: American standard: 16.1kg European standard: 12.85kg
    • Size: 508x420x594mm
    • HS code: 940549
    • Country of origin: China

    Applicable Industries

    • Explosion-Proof Floodlight is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

      It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.


    Credibility

    • Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.

      Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.


    FAQ

    • Q1: Are the explosion-proof floodlights suitable for outdoor environments?

      A1: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.

      Q2: Do you support customization for different voltages?
      A2: Yes, we support customization and can provide 400V or 1000V as custom voltage specifications.
      Q3: What international standards are available for selection?
      A3: Both American standard and European standard are available.


    RESOURCE DOWNLOAD

    BnT81 Series Explosion-proof Floodlights

    BnT81 Series Explosion-proof Floodlights

    BnT81-400_IECEx CQM 12.0011X Issue No.2

    BnT81-1000_IECEx CQM 13.0006X Issue No.0

    BnT81 Selection table

    BnT81 Photometric data
