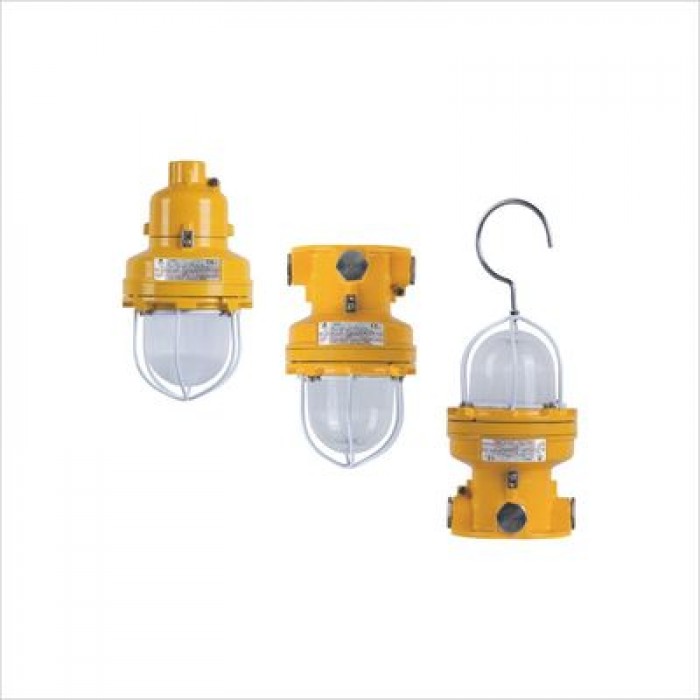

BDD81 Series Explosion-proof Lightings

• • ◆ This explosion proof pendant light features Ex e enclosure with explosion-proof components inside.
  • ◆ Explosion proof pendant light fittings Interlock function between enclosure and diffuser, switches off on opening.
  • ◆This explosion-proof pendant light comes with a selection of available lamps:Incandescent lamp, Energy-saving lamp, LED lamp.

TECHNICAL DATA

Product Parameters

• Product Type: BDD81

• Standards: CENELEC, IEC, NEC

• Zones:

Zone 1 and Zone 2

Zone 21 and Zone 22

Class I, Zone 1 and Zone 2

Class I, Division 1, Groups A, B, C, D

• Explosion protection:

IECEx (Gas and dust): Ex d IIC T4 Gb; Ex t IIIC T130°C Db IP66

ATEX (Gas and dust): II 2 G Ex d IIC T4 Gb; II 2 D Ex t IIIC T130°C Db IP66

• Material:

Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)

Transparent cover: Toughened glass, stands 4J impact

Exposed fastener: Stainless steel

Lamp holder: E27

• Available lamp and lamp power (W):

Incandescent lamp: 25W, 40W, 60W, 100W

Energy-saving lamp: 9W, 11W (for sealed atmosphere)

LED: 3W, 5W, 8W

• Rated luminous flux: 201~1025lm
• Rated voltage: 220~240V AC 50/60Hz
• Earthing protection: M5 (internal & external earth bolts)
• Degree of protection: IP66
• Ambient temperature: -40°C~+55°C
• Terminal: 3 x 1.5~4mm² (L+N+PE)
• Cable entries: 4 x M25 x 1.5 for ceiling type and portable type; 1 x M25 x 1.5 for pendant pole type
• Cable glands: DQM-II (Ex d) or DQM-III (Ex d) is recommended
• Available cable outer diameter: Φ10~Φ14 (mm)
• Weight: 2.5kg~4.5kg
• Size: 146x146x250mm
• Mounting: X: ceiling type, G: pendant pole type, H: portable type
• HS code: 940549
• Country of origin: China

Applicable Industries

Explosion-Proof Pendant Light is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Areas.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.

Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.
